Within an Insights Explore, users can leverage the x-menu options to customize the appearance and behavior of the x-axis in a line visualization. This allows for fine-tuning the chart to best represent the underlying data and meet specific reporting needs.
Proceed as follows to customize the Line Visualization in Explore and optimize the presentation of your data using the X Menu.
Step 1: Access a report through an Insights Explore
Log in to the CyberGrants platform and navigate to the Insights tab.

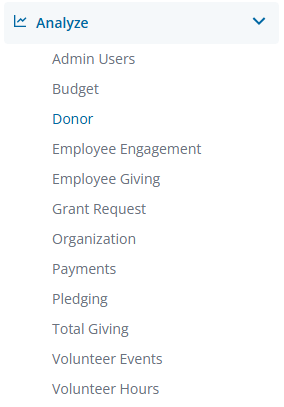

In the left-hand menu, select the "Analyze" option to view and choose from the available Explores. Create a new report by either building it from scratch by adding relevant fields or if any prebuilt Quick Start reports are available, select one of those as a starting point.
Step 2: View the Line Visualization X Menu
The Line icon in the Visualization toolbar will allow you to view the report as a line chart.
Click Edit in the right corner of the Visualization toolbar to access the Line Visualization X Menu options.
Step 3: Customize the Scale Type

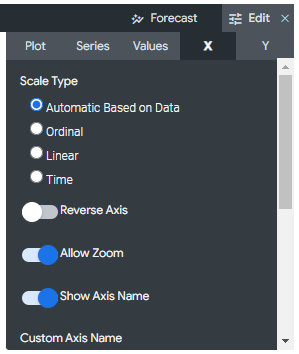

In the "X Menu Options," you can specify how the x-axis scale is calculated and displayed. Choose from "Automatic," "Ordinal," “Linear,” or "Time" scale types, depending on your data and preferences.
- Automatic Based on Data - The scale will be inferred from the underlying data. This is the default setting.
- Ordinal - The data is plotted along the x-axis as evenly spaced, discrete entries, regardless of relative distance between data points.
- Linear - The data is plotted as linear numeric values.
- Time - The data is plotted as time values. The x-axis is labeled with appropriate time increments.
Step 4: Customize the X-Axis
In the "X Menu Options," you can further customize the x-axis using the following features.

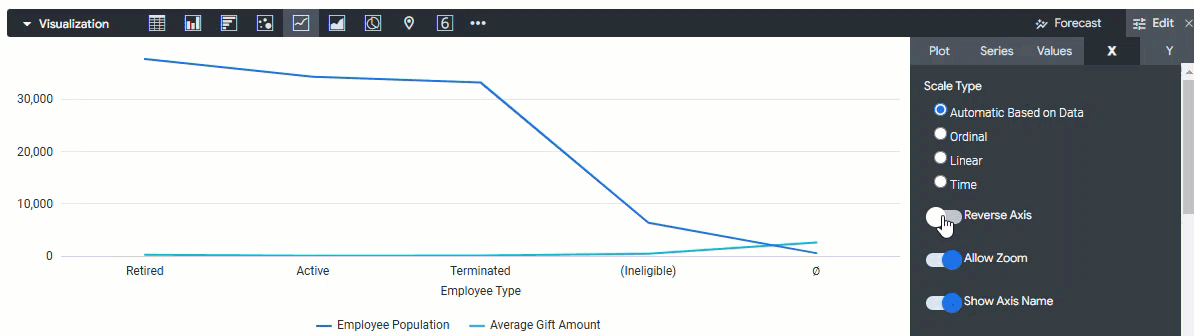

- Reverse Axis - Toggle the direction of the x-axis. When this is off, values increase from left to right. When on, values decrease from left to right.
- Allow Zoom - Enabled by default and allows users to zoom in and out.
- Show Axis Name – Toggle the appearance of the x-axis name label.
- Custom Axis Name - Sets the name for the x-axis and accepts any string value.
- Axis Value Labels – Toggle the appearance of value labels on the x-axis.
Step 5: Adjust the Gridlines

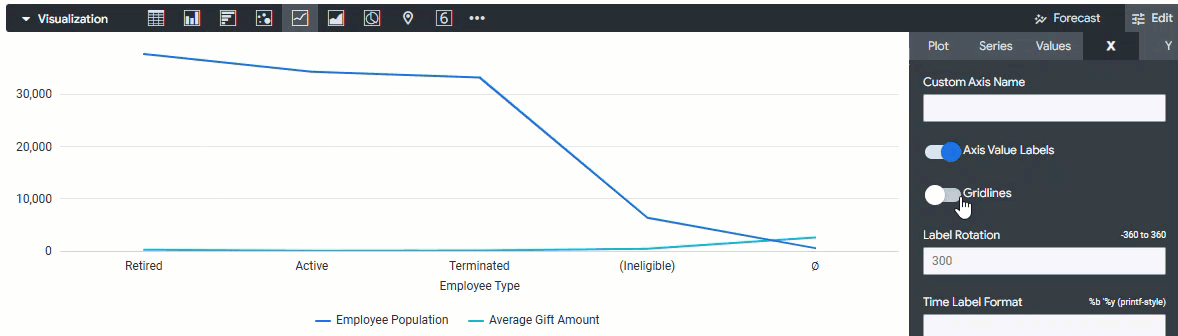

Adjust the toggle setting to update the visual appearance of the gridlines protruding from the x-axis.
Step 6: Update the Label Rotation

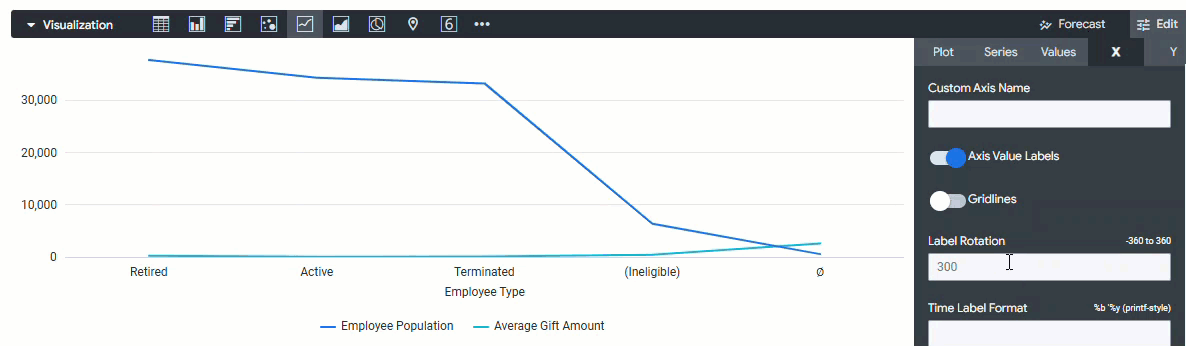

Use the Label Rotation option to set the rotation of the x-axis value labels. This parameter accepts values between -360 and 360, denoting the number of degrees to rotate the labels.
Step 7: Update the Time Label Format
If your data is time-based, configure the "Time Label Format" to display the desired date and time format. The Time Label Format specifies how x-axis value labels are displayed for charts with a time dimension on the x-axis. This parameter accepts time formatting syntax, as shown below:
- %b '%y, %H:%M displays Aug '14, 22:31
- %B %Y, %I:%M %p displays August 2014, 10:31 PM
- %x %X displays 12/15/2014 10:31:00
- %I:%M:%S %p displays 10:31:00 PM
